LABEL PRINTING MACHINE / MODEL HK - 2706PU6 HLN

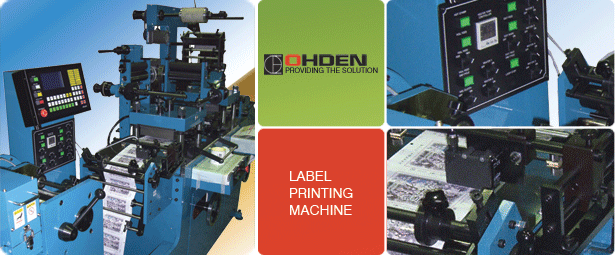

label printing machine


LABEL PRINTING MACHINE / MODEL HK - 2706PU6 HLN

HIKARI - Top Quality of Japan -

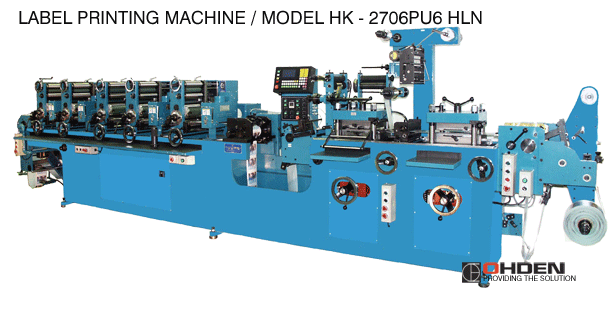

model hk-2706pu6 hln


Multi- axis synchronizing control system by AC Servo Motor.
Rotary infermittent feeding system makes high quality with high performance.  Best for small lot of variety labels with multi-function.

Feature 1:
Paper loss is remarkably saved!
Because, after input the feeding length into display panel, each printing unit is moved according to the scale on the table meeting the figure displayed in the panel, then each unit is made small adjustment to make registration, therefore paper loss is saved very much.

Feature 2:
The solid printing, half-tone or variety of printing can be accordingly matched!
Because, the inking roller is directly rotated by small variable gear motor, so by changing its speed faster or slower the volume of ink supply is controlled, which can make matching to the solid printing, half-tone or variety of printing.

Feature 3:
The independent cutting machine can be connected!
Because, Die-Cut Unit is designed inline which makes saving factory space in layout and rewinding unit is also inline, so the independent cutting machine can be connected.

Feature4:
At Die-cut unit, the bottom dead-point control can be set freely at random angle of circumference by parameter.

Specifications: Model HK-2706PU6HLN

  • Paper width: 270mm
  • Max printing area:255mmWx200mmL
  • Max die-cut area: 260mmWx200mmL
  • MaxSpeed:150 shot/ min.
  • Control unit: 8 axis synchronized control system
  • UV Equipment: 2KWx6 lamps
  • Machine dimension for 6-color:1200mmW x6600mmLx1800mmH
  • Machine weight: Approx.4100kgs
  • This specification is subject to change without notice for modifications and improvements.
  • Powered by AC Servo Motor for・Main motor 6 units・In feeding motor・Out feeding motor・Die-cutting motor (with gear)・Hot stamping motor (with gear)・Foil feeding motor・Exit feeding motor (with gear)・Sheet feeding motor synchronized with rewinding motor (with gear)・Fan motor and 200V single-phase small gear motor 13 units
